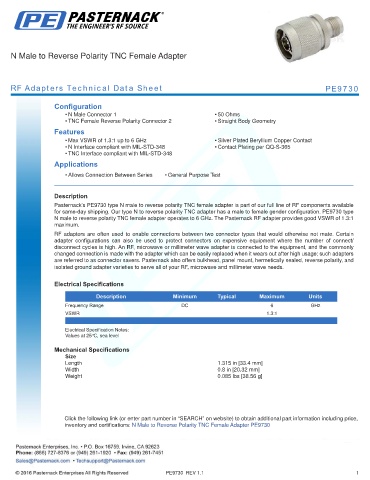

N Male to Reverse Polarity TNC Female Adapter

RF Adapters Technical Data Sheet PE9730

Configuration
• N Male Connector 1 • 50 Ohms
• TNC Female Reverse Polarity Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 6 GHz • Silver Plated Beryllium Copper Contact
• N Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• TNC Interface compliant with MIL-STD-348
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9730 type N male to reverse polarity TNC female adapter is part of our full line of RF components available
for same-day shipping. Our type N to reverse polarity TNC adapter has a male to female gender configuration. PE9730 type
N male to reverse polarity TNC female adapter operates to 6 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1
maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level

Mechanical Specifications
Size
Length 1.315 in [33.4 mm]
Width 0.8 in [20.32 mm]
Weight 0.085 lbs [38.56 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to Reverse Polarity TNC Female Adapter PE9730

PE9730 REV 1.1 1
