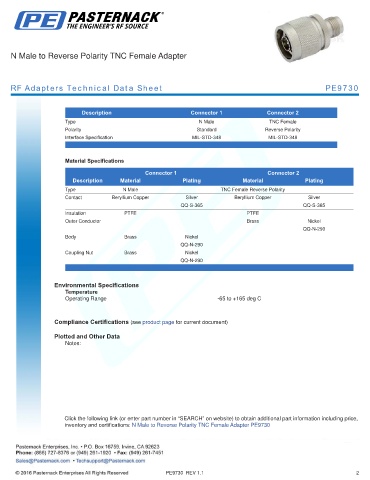

N Male to Reverse Polarity TNC Female Adapter

RF Adapters Technical Data Sheet PE9730

.
Description Connector 1 Connector 2
Type N Male TNC Female
Polarity Standard Reverse Polarity
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male TNC Female Reverse Polarity
Contact Beryllium Copper Silver Beryllium Copper Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to Reverse Polarity TNC Female Adapter PE9730
