N Female to Reverse Polarity TNC Male Adapter

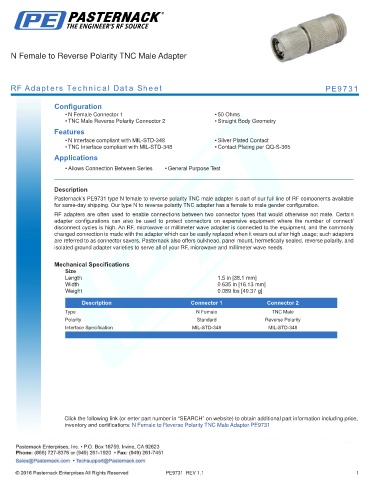

RF Adapters Technical Data Sheet PE9731

Configuration
• N Female Connector 1 • 50 Ohms
• TNC Male Reverse Polarity Connector 2 • Straight Body Geometry
Features
• N Interface compliant with MIL-STD-348 • Silver Plated Contact
• TNC Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9731 type N female to reverse polarity TNC male adapter is part of our full line of RF components available
for same-day shipping. Our type N to reverse polarity TNC adapter has a female to male gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width 0.635 in [16.13 mm]
Weight 0.089 lbs [40.37 g]
.
Description Connector 1 Connector 2
Type N Female TNC Male
Polarity Standard Reverse Polarity
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to Reverse Polarity TNC Male Adapter PE9731

PE9731 REV 1.1 1
