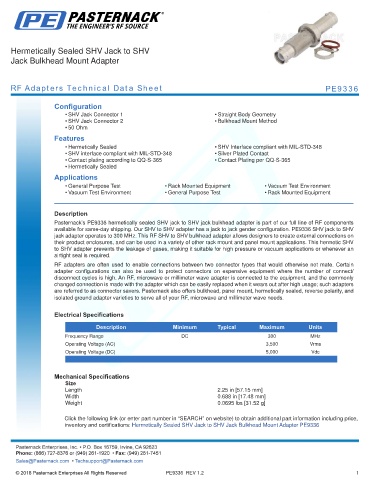

Hermetically Sealed SHV Jack to SHV
Jack Bulkhead Mount Adapter

RF Adapters Technical Data Sheet PE9336

Configuration
• SHV Jack Connector 1 • Straight Body Geometry
• SHV Jack Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• Hermetically Sealed • SHV Interface compliant with MIL-STD-348
• SHV interface compliant with MIL-STD-348 • Silver Plated Contact
• Contact plating according to QQ-S-365 • Contact Plating per QQ-S-365
• Hermetically Sealed
Applications
• General Purpose Test • Rack Mounted Equipment • Vacuum Test Environment
• Vacuum Test Environment • General Purpose Test • Rack Mounted Equipment
.
Description
Pasternack’s PE9336 hermetically sealed SHV jack to SHV jack bulkhead adapter is part of our full line of RF components
available for same-day shipping. Our SHV to SHV adapter has a jack to jack gender configuration. PE9336 SHV jack to SHV
jack adapter operates to 300 MHz. This RF SHV to SHV bulkhead adapter allows designers to create external connections on
their product enclosures, and can be used in a variety of other rack mount and panel mount applications. This hermetic SHV
to SHV adapter prevents the leakage of gases, making it suitable for high pressure or vacuum applications or whenever an
airtight seal is required.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
Operating Voltage (AC) 3,500 Vrms
Operating Voltage (DC) 5,000 Vdc
. .

Mechanical Specifications
Size
Length 2.25 in [57.15 mm]
Width 0.688 in [17.48 mm]
Weight 0.0695 lbs [31.52 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Hermetically Sealed SHV Jack to SHV Jack Bulkhead Mount Adapter PE9336
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9336 REV 1.2 1
