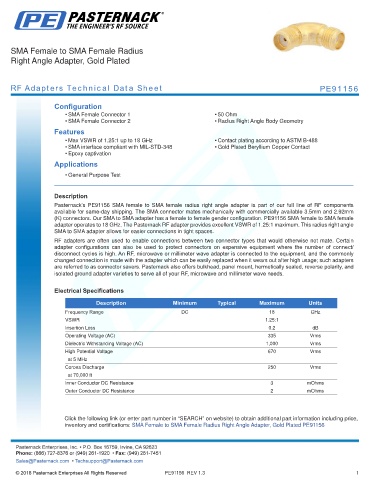

SMA Female to SMA Female Radius
Right Angle Adapter, Gold Plated

RF Adapters Technical Data Sheet PE91156

Configuration
• SMA Female Connector 1 • 50 Ohm
• SMA Female Connector 2 • Radius Right Angle Body Geometry
Features
• Max VSWR of 1.25:1 up to 18 GHz • Contact plating according to ASTM B-488
• SMA interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
• Epoxy captivation
Applications
• General Purpose Test

.
Description
Pasternack’s PE91156 SMA female to SMA female radius right angle adapter is part of our full line of RF components
available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm
(K) connectors. Our SMA to SMA adapter has a female to female gender configuration. PE91156 SMA female to SMA female
adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum. This radius right angle
SMA to SMA adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
Insertion Loss 0.2 dB
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 670 Vrms
at 5 MHz
Corona Discharge 250 Vrms
at 70,000 ft
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2 mOhms

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Radius Right Angle Adapter, Gold Plated PE91156
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91156 REV 1.3 1
