SMA Female to SMA Female Radius
Right Angle Adapter, Gold Plated

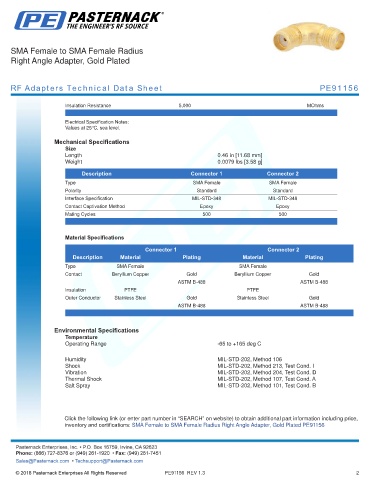

RF Adapters Technical Data Sheet PE91156

Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.46 in [11.68 mm]
Weight 0.0079 lbs [3.58 g]
.
Description Connector 1 Connector 2
Type SMA Female SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Contact Captivation Method Epoxy Epoxy
Mating Cycles 500 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
ASTM B-488 ASTM B-488
Insulation PTFE PTFE
Outer Conductor Stainless Steel Gold Stainless Steel Gold
ASTM B-488 ASTM B-488
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Test Cond. I
Vibration MIL-STD-202, Method 204, Test Cond. D
Thermal Shock MIL-STD-202, Method 107, Test Cond. A
Salt Spray MIL-STD-202, Method 101, Test Cond. B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMA Female Radius Right Angle Adapter, Gold Plated PE91156
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
