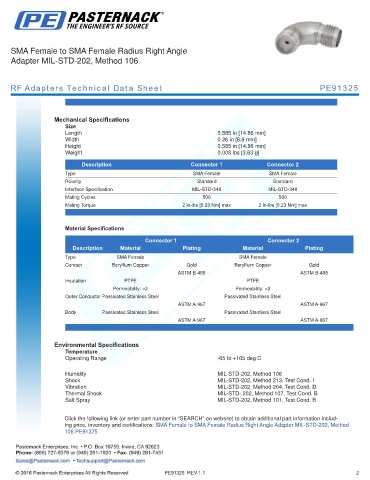

SMA Female to SMA Female Radius Right Angle
Adapter MIL-STD-202, Method 106

RF Adapters Technical Data Sheet PE91325

. .

Mechanical Specifications
Size
Length 0.585 in [14.86 mm]
Width 0.26 in [6.6 mm]
Height 0.585 in [14.86 mm]
Weight 0.008 lbs [3.63 g]
.
Description Connector 1 Connector 2
Type SMA Female SMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Mating Cycles 500 500
Mating Torque 2 in-lbs [0.23 Nm] max 2 in-lbs [0.23 Nm] max
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMA Female
Contact Beryllium Copper Gold Beryllium Copper Gold
ASTM B-488 ASTM B-488
Insulation PTFE PTFE
Permeability: <2 Permeability: <2
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
ASTM A-967 ASTM A-967
Body Passivated Stainless Steel Passivated Stainless Steel
ASTM A-967 ASTM A-967
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Test Cond. I
Vibration MIL-STD-202, Method 204, Test Cond. D.
Thermal Shock MIL-STD- 202, Method 107, Test Cond. B
Salt Spray MIL-STD-202, Method 101, Test Cond. B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: SMA Female to SMA Female Radius Right Angle Adapter MIL-STD-202, Method
106 PE91325
