SMA Female to SMA Female Radius Right Angle
Adapter MIL-STD-202, Method 106

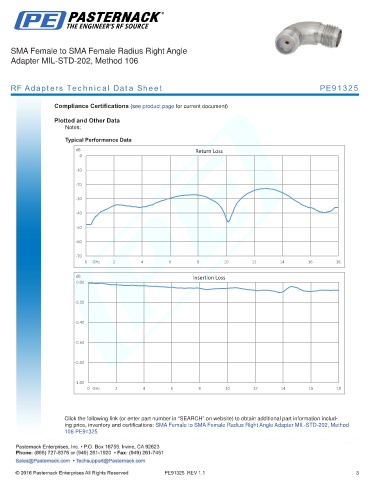

RF Adapters Technical Data Sheet PE91325

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
Typical Performance Data
dB Return Loss
0
-10

-20

-30

-40

-50

-60

-70
0 GHz 2 4 6 8 10 12 14 16 18

dB Insertion Loss
0.00

-0.20

-0.40

-0.60

-0.80

-1.00
0 GHz 2 4 6 8 10 12 14 16 18

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: SMA Female to SMA Female Radius Right Angle Adapter MIL-STD-202, Method
106 PE91325

PE91325 REV 1.1 3
