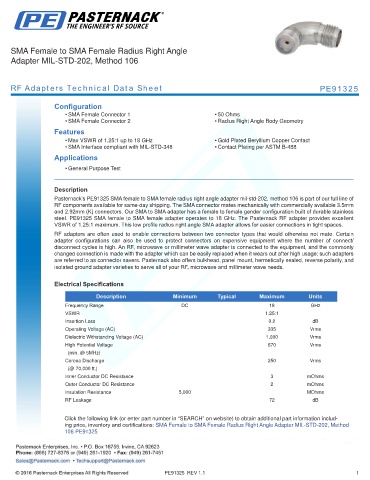

SMA Female to SMA Female Radius Right Angle
Adapter MIL-STD-202, Method 106

RF Adapters Technical Data Sheet PE91325

Configuration
• SMA Female Connector 1 • 50 Ohms
• SMA Female Connector 2 • Radius Right Angle Body Geometry
Features
• Max VSWR of 1.25:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348 • Contact Plating per ASTM B-488
Applications
• General Purpose Test
.
Description
Pasternack’s PE91325 SMA female to SMA female radius right angle adapter mil-std-202, method 106 is part of our full line of
RF components available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm
and 2.92mm (K) connectors. Our SMA to SMA adapter has a female to female gender configuration built of durable stainless
steel. PE91325 SMA female to SMA female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent
VSWR of 1.25:1 maximum. This low profile radius right angle SMA adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
Insertion Loss 0.2 dB
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 670 Vrms
(min. @ 5MHz)
Corona Discharge 250 Vrms
(@ 70,000 ft.)
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
RF Leakage 72 dB

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: SMA Female to SMA Female Radius Right Angle Adapter MIL-STD-202, Method
106 PE91325

PE91325 REV 1.1 1
