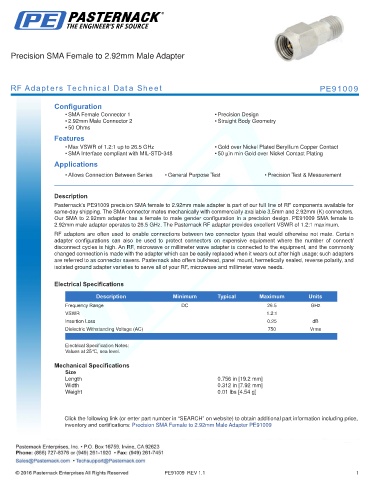

Precision SMA Female to 2.92mm Male Adapter

RF Adapters Technical Data Sheet PE91009

Configuration
• SMA Female Connector 1 • Precision Design
• 2.92mm Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.2:1 up to 26.5 GHz • Gold over Nickel Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348 • 50 µin min Gold over Nickel Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE91009 precision SMA female to 2.92mm male adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to 2.92mm adapter has a female to male gender configuration in a precision design. PE91009 SMA female to
2.92mm male adapter operates to 26.5 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
VSWR 1.2:1
Insertion Loss 0.25 dB
Dielectric Withstanding Voltage (AC) 750 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.756 in [19.2 mm]
Width 0.312 in [7.92 mm]
Weight 0.01 lbs [4.54 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to 2.92mm Male Adapter PE91009

PE91009 REV 1.1 1
