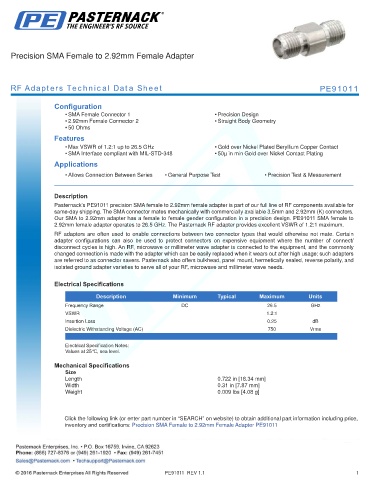

Precision SMA Female to 2.92mm Female Adapter

RF Adapters Technical Data Sheet PE91011

Configuration
• SMA Female Connector 1 • Precision Design
• 2.92mm Female Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.2:1 up to 26.5 GHz • Gold over Nickel Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348 • 50µ in min Gold over Nickel Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE91011 precision SMA female to 2.92mm female adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to 2.92mm adapter has a female to female gender configuration in a precision design. PE91011 SMA female to
2.92mm female adapter operates to 26.5 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
VSWR 1.2:1
Insertion Loss 0.25 dB
Dielectric Withstanding Voltage (AC) 750 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.722 in [18.34 mm]
Width 0.31 in [7.87 mm]
Weight 0.009 lbs [4.08 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to 2.92mm Female Adapter PE91011

PE91011 REV 1.1 1
