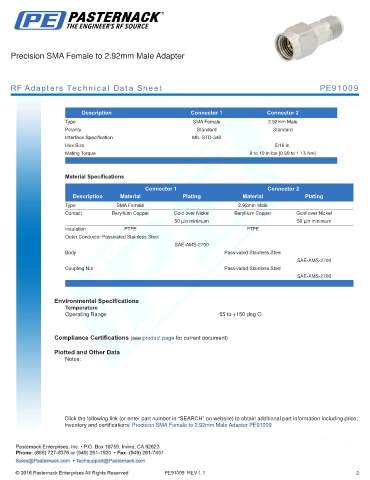

Precision SMA Female to 2.92mm Male Adapter

RF Adapters Technical Data Sheet PE91009

.
Description Connector 1 Connector 2
Type SMA Female 2.92mm Male
Polarity Standard Standard
Interface Specification MIL-STD-348
Hex Size 5/16 in.
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female 2.92mm Male
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
50 µin minimum 50 µin minimum
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
SAE-AMS-2700
Body Passivated Stainless Steel
SAE-AMS-2700
Coupling Nut Passivated Stainless Steel
SAE-AMS-2700
. .

Environmental Specifications
Temperature
Operating Range -55 to +150 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to 2.92mm Male Adapter PE91009

PE91009 REV 1.1 2
