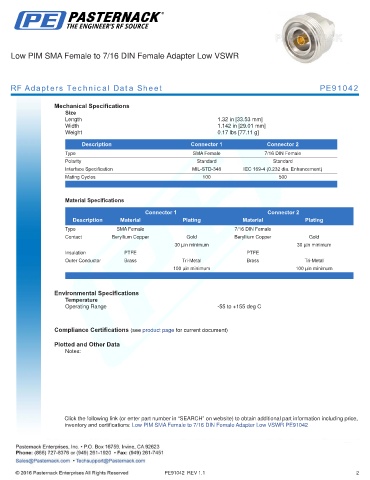

Low PIM SMA Female to 7/16 DIN Female Adapter Low VSWR

RF Adapters Technical Data Sheet PE91042

Mechanical Specifications
Size
Length 1.32 in [33.53 mm]
Width 1.142 in [29.01 mm]
Weight 0.17 lbs [77.11 g]
.
Description Connector 1 Connector 2
Type SMA Female 7/16 DIN Female
Polarity Standard Standard
Interface Specification MIL-STD-348 IEC 169-4 (0.232 dia. Enhancement)
Mating Cycles 100 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female 7/16 DIN Female
Contact Beryllium Copper Gold Beryllium Copper Gold
30 µin minimum 30 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal Brass Tri-Metal
100 µin minimum 100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM SMA Female to 7/16 DIN Female Adapter Low VSWR PE91042

PE91042 REV 1.1 2
