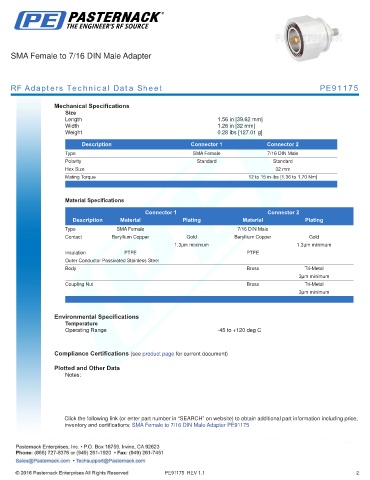

SMA Female to 7/16 DIN Male Adapter

RF Adapters Technical Data Sheet PE91175

Mechanical Specifications
Size
Length 1.56 in [39.62 mm]
Width 1.26 in [32 mm]
Weight 0.28 lbs [127.01 g]
.
Description Connector 1 Connector 2
Type SMA Female 7/16 DIN Male
Polarity Standard Standard
Hex Size 32 mm
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female 7/16 DIN Male
Contact Beryllium Copper Gold Beryllium Copper Gold
1.3µm minimum 1.3µm minimum
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
Body Brass Tri-Metal
3µm minimum
Coupling Nut Brass Tri-Metal
3µm minimum
. .

Environmental Specifications
Temperature
Operating Range -45 to +120 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to 7/16 DIN Male Adapter PE91175
