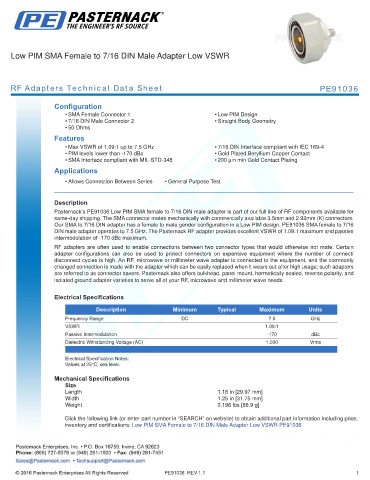

Low PIM SMA Female to 7/16 DIN Male Adapter Low VSWR

RF Adapters Technical Data Sheet PE91036

Configuration
• SMA Female Connector 1 • Low PIM Design
• 7/16 DIN Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.09:1 up to 7.5 GHz • 7/16 DIN Interface compliant with IEC 169-4
• PIM levels lower than -170 dBc • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348 • 200 µin min Gold Contact Plating
Applications

• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91036 Low PIM SMA female to 7/16 DIN male adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to 7/16 DIN adapter has a female to male gender configuration in a Low PIM design. PE91036 SMA female to 7/16
DIN male adapter operates to 7.5 GHz. The Pasternack RF adapter provides excellent VSWR of 1.09:1 maximum and passive
intermodulation of -170 dBc maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 7.5 GHz
VSWR 1.09:1
Passive Intermodulation -170 dBc
Dielectric Withstanding Voltage (AC) 1,000 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.18 in [29.97 mm]
Width 1.25 in [31.75 mm]
Weight 0.196 lbs [88.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM SMA Female to 7/16 DIN Male Adapter Low VSWR PE91036
