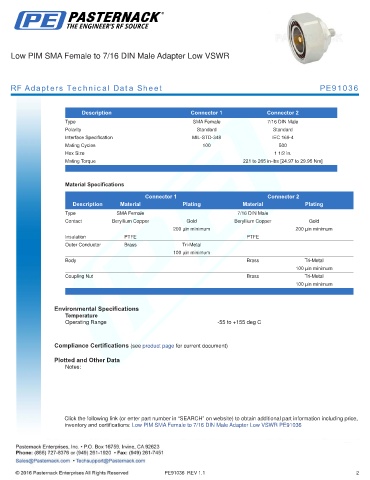

Low PIM SMA Female to 7/16 DIN Male Adapter Low VSWR

RF Adapters Technical Data Sheet PE91036

.
Description Connector 1 Connector 2
Type SMA Female 7/16 DIN Male
Polarity Standard Standard
Interface Specification MIL-STD-348 IEC 169-4
Mating Cycles 100 500
Hex Size 1 1/2 in.
Mating Torque 221 to 265 in-lbs [24.97 to 29.95 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female 7/16 DIN Male
Contact Beryllium Copper Gold Beryllium Copper Gold
200 µin minimum 200 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal
100 µin minimum
Body Brass Tri-Metal
100 µin minimum
Coupling Nut Brass Tri-Metal
100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM SMA Female to 7/16 DIN Male Adapter Low VSWR PE91036

PE91036 REV 1.1 2
