Precision 4 Hole Flange SMA Female to 7mm Sexless Adapter

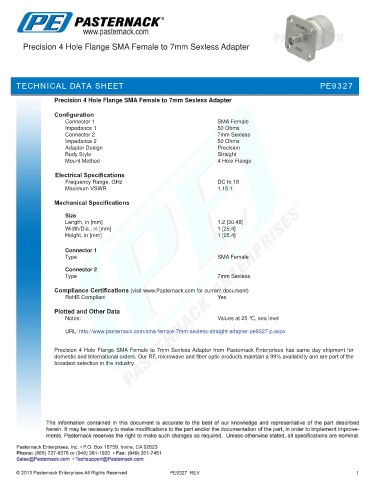

TECHNICAL DATA SHEET PE9327

Precision 4 Hole Flange SMA Female to 7mm Sexless Adapter

Configuration
Connector 1 SMA Female
Impedance 1 50 Ohms
Connector 2 7mm Sexless
Impedance 2 50 Ohms
Adapter Design Precision
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Frequency Range, GHz DC to 18
Maximum VSWR 1.15:1

Mechanical Specifications

Size
Length, in [mm] 1.2 [30.48]
Width/Dia., in [mm] 1 [25.4]
Height, in [mm] 1 [25.4]
.
Connector 1
Type SMA Female

Connector 2
Type 7mm Sexless

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/sma-female-7mm-sexless-straight-adapter-pe9327-p.aspx

Precision 4 Hole Flange SMA Female to 7mm Sexless Adapter from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.

PE9327 REV 1
