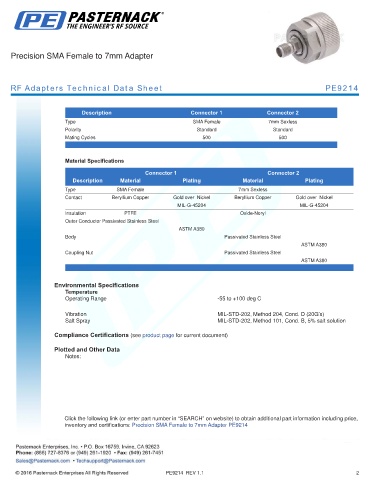

Precision SMA Female to 7mm Adapter

RF Adapters Technical Data Sheet PE9214

.
Description Connector 1 Connector 2
Type SMA Female 7mm Sexless
Polarity Standard Standard
Mating Cycles 500 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female 7mm Sexless
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
MIL-G-45204 MIL-G-45204
Insulation PTFE Oxide-Noryl
Outer Conductor Passivated Stainless Steel
ASTM A380
Body Passivated Stainless Steel
ASTM A380
Coupling Nut Passivated Stainless Steel
ASTM A380
. .

Environmental Specifications
Temperature
Operating Range -55 to +100 deg C
.
Vibration MIL-STD-202, Method 204, Cond. D (20G’s)
Salt Spray MIL-STD-202, Method 101, Cond. B, 5% salt solution

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to 7mm Adapter PE9214

PE9214 REV 1.1 2
