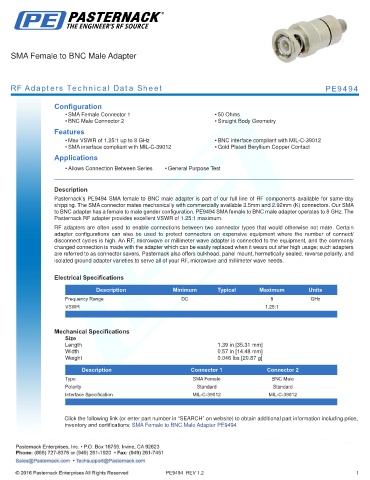

SMA Female to BNC Male Adapter

RF Adapters Technical Data Sheet PE9494

Configuration
• SMA Female Connector 1 • 50 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 8 GHz • BNC interface compliant with MIL-C-39012
• SMA interface compliant with MIL-C-39012 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9494 SMA female to BNC male adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to BNC adapter has a female to male gender configuration. PE9494 SMA female to BNC male adapter operates to 8 GHz. The
Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 8 GHz
VSWR 1.25:1
. .

Mechanical Specifications
Size
Length 1.39 in [35.31 mm]
Width 0.57 in [14.48 mm]
Weight 0.046 lbs [20.87 g]
.
Description Connector 1 Connector 2
Type SMA Female BNC Male
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to BNC Male Adapter PE9494
