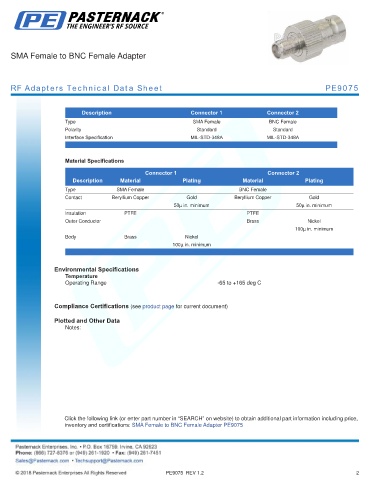

SMA Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9075

.
Description Connector 1 Connector 2
Type SMA Female BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female BNC Female
Contact Beryllium Copper Gold Beryllium Copper Gold
50µ in. minimum 50µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100µ in. minimum
Body Brass Nickel
100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to BNC Female Adapter PE9075

PE9075 REV 1.2 2
