SMA Female to FME Jack Adapter

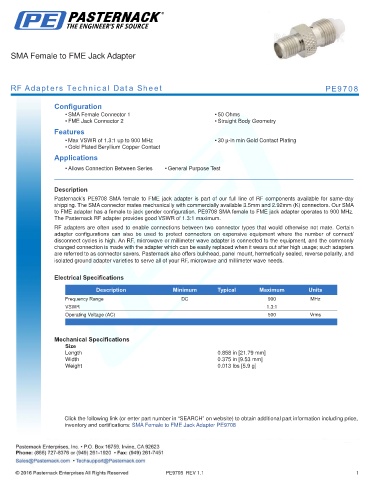

RF Adapters Technical Data Sheet PE9708

Configuration
• SMA Female Connector 1 • 50 Ohms
• FME Jack Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 900 MHz • 30 µ-in min Gold Contact Plating
• Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9708 SMA female to FME jack adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to FME adapter has a female to jack gender configuration. PE9708 SMA female to FME jack adapter operates to 900 MHz.
The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 900 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 0.858 in [21.79 mm]
Width 0.375 in [9.53 mm]
Weight 0.013 lbs [5.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to FME Jack Adapter PE9708

PE9708 REV 1.1 1
