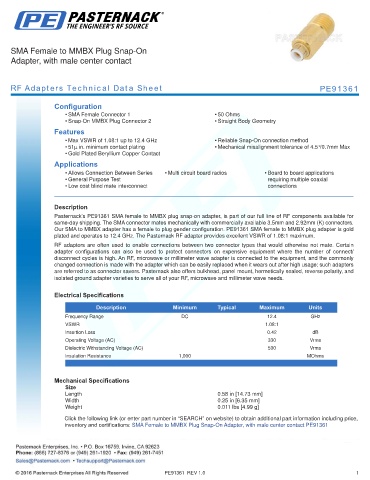

SMA Female to MMBX Plug Snap-On
Adapter, with male center contact

RF Adapters Technical Data Sheet PE91361

Configuration
• SMA Female Connector 1 • 50 Ohms
• Snap-On MMBX Plug Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.08:1 up to 12.4 GHz • Reliable Snap-On connection method
• 51µ in. minimum contact plating • Mechanical misalignment tolerance of 4.5°/0.7mm Max
• Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • Multi circuit board radios • Board to board applications
• General Purpose Test requiring multiple coaxial
• Low cost blind mate interconnect connections
.
Description
Pasternack’s PE91361 SMA female to MMBX plug snap-on adapter, is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to MMBX adapter has a female to plug gender configuration. PE91361 SMA female to MMBX plug adapter is gold
plated and operates to 12.4 GHz. The Pasternack RF adapter provides excellent VSWR of 1.08:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.08:1
Insertion Loss 0.42 dB
Operating Voltage (AC) 330 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
Insulation Resistance 1,000 MOhms
. .

Mechanical Specifications
Size
Length 0.58 in [14.73 mm]
Width 0.25 in [6.35 mm]
Weight 0.011 lbs [4.99 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to MMBX Plug Snap-On Adapter, with male center contact PE91361

PE91361 REV 1.0 1
