SMA Female to MMBX Jack Push-On
Adapter, with female center contact

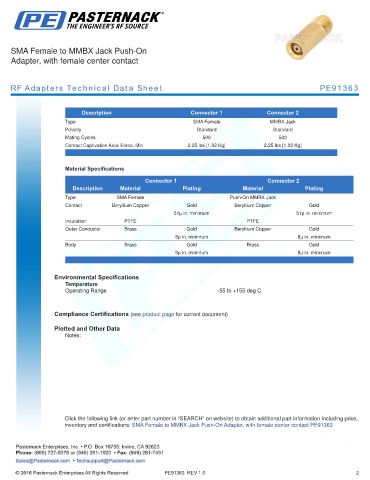

RF Adapters Technical Data Sheet PE91363

.
Description Connector 1 Connector 2
Type SMA Female MMBX Jack
Polarity Standard Standard
Mating Cycles 500 500
Contact Captivation Axial Force, Min 2.25 lbs [1.02 Kg] 2.25 lbs [1.02 Kg]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female Push-On MMBX Jack
Contact Beryllium Copper Gold Beryllium Copper Gold
51µ in. minimum 51µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Gold Beryllium Copper Gold
8µ in. minimum 8µ in. minimum
Body Brass Gold Brass Gold
8µ in. minimum 8µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to MMBX Jack Push-On Adapter, with female center contact PE91363

PE91363 REV 1.0 2
