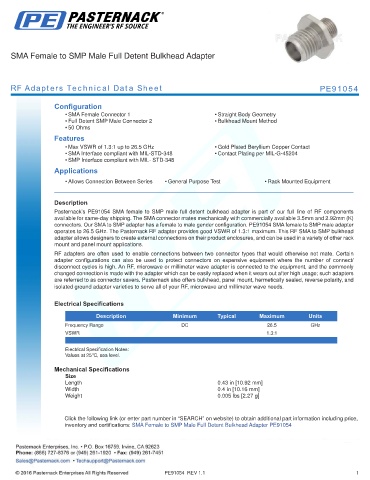

SMA Female to SMP Male Full Detent Bulkhead Adapter

RF Adapters Technical Data Sheet PE91054

Configuration
• SMA Female Connector 1 • Straight Body Geometry
• Full Detent SMP Male Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Max VSWR of 1.3:1 up to 26.5 GHz • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• SMP Interface compliant with MIL- STD-348
Applications

• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment
.
Description
Pasternack’s PE91054 SMA female to SMP male full detent bulkhead adapter is part of our full line of RF components
available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K)
connectors. Our SMA to SMP adapter has a female to male gender configuration. PE91054 SMA female to SMP male adapter
operates to 26.5 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This RF SMA to SMP bulkhead
adapter allows designers to create external connections on their product enclosures, and can be used in a variety of other rack
mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.43 in [10.92 mm]
Width 0.4 in [10.16 mm]
Weight 0.005 lbs [2.27 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMP Male Full Detent Bulkhead Adapter PE91054

PE91054 REV 1.1 1
