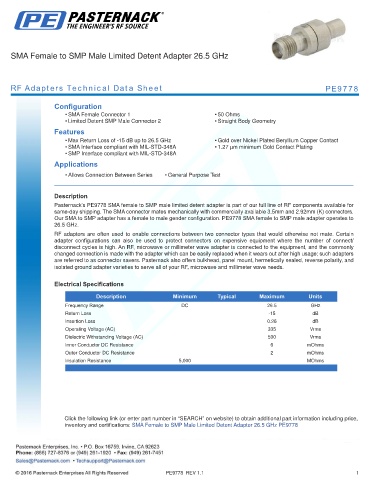

SMA Female to SMP Male Limited Detent Adapter 26.5 GHz

RF Adapters Technical Data Sheet PE9778

Configuration
• SMA Female Connector 1 • 50 Ohms
• Limited Detent SMP Male Connector 2 • Straight Body Geometry
Features
• Max Return Loss of -15 dB up to 26.5 GHz • Gold over Nickel Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348A • 1.27 µm minimum Gold Contact Plating
• SMP Interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9778 SMA female to SMP male limited detent adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to SMP adapter has a female to male gender configuration. PE9778 SMA female to SMP male adapter operates to
26.5 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
Return Loss -15 dB
Insertion Loss 0.26 dB
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMP Male Limited Detent Adapter 26.5 GHz PE9778
