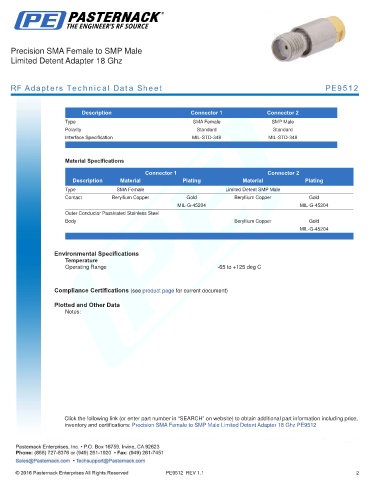

Precision SMA Female to SMP Male
Limited Detent Adapter 18 Ghz

RF Adapters Technical Data Sheet PE9512

.
Description Connector 1 Connector 2
Type SMA Female SMP Male
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female Limited Detent SMP Male
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Outer Conductor Passivated Stainless Steel
Body Beryllium Copper Gold
MIL-G-45204
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to SMP Male Limited Detent Adapter 18 Ghz PE9512

PE9512 REV 1.1 2
