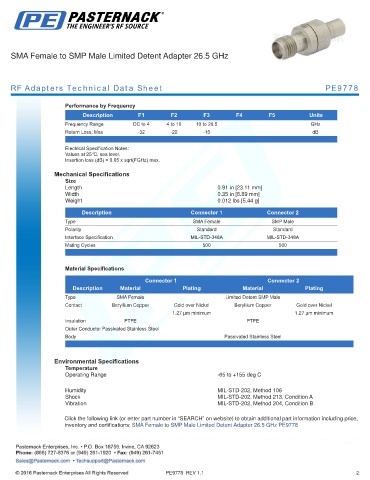

SMA Female to SMP Male Limited Detent Adapter 26.5 GHz

RF Adapters Technical Data Sheet PE9778

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 4 4 to 10 10 to 26.5 GHz
Return Loss, Max -32 -22 -15 dB
.
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion loss (dB) = 0.05 x sqrt(FGHz) max.

Mechanical Specifications
Size
Length 0.91 in [23.11 mm]
Width 0.35 in [8.89 mm]
Weight 0.012 lbs [5.44 g]
.
Description Connector 1 Connector 2
Type SMA Female SMP Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female Limited Detent SMP Male
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
1.27 µm minimum 1.27 µm minimum
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +155 deg C
.
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition A
Vibration MIL-STD-202, Method 204, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMP Male Limited Detent Adapter 26.5 GHz PE9778

PE9778 REV 1.1 2
