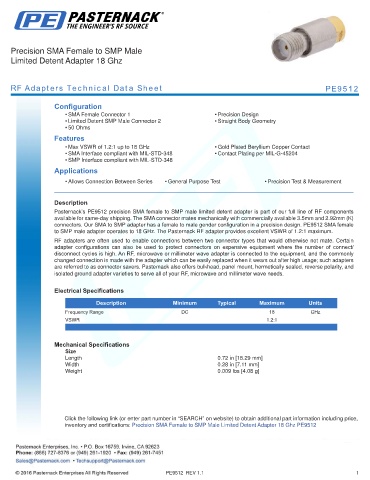

Precision SMA Female to SMP Male
Limited Detent Adapter 18 Ghz

RF Adapters Technical Data Sheet PE9512

Configuration
• SMA Female Connector 1 • Precision Design
• Limited Detent SMP Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.2:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• SMP Interface compliant with MIL-STD-348
Applications

• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement
.
Description
Pasternack’s PE9512 precision SMA female to SMP male limited detent adapter is part of our full line of RF components
available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K)
connectors. Our SMA to SMP adapter has a female to male gender configuration in a precision design. PE9512 SMA female
to SMP male adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.2:1
. .

Mechanical Specifications
Size
Length 0.72 in [18.29 mm]
Width 0.28 in [7.11 mm]
Weight 0.009 lbs [4.08 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to SMP Male Limited Detent Adapter 18 Ghz PE9512

PE9512 REV 1.1 1
