SMA Female to RP TNC Male Adapter

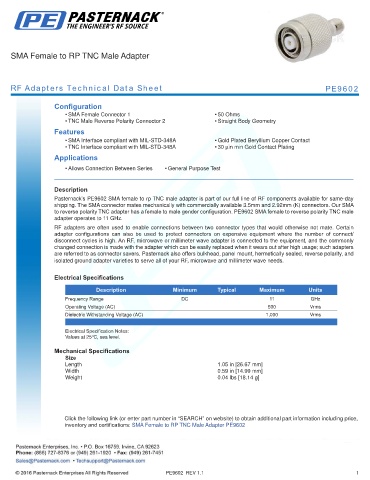

RF Adapters Technical Data Sheet PE9602

Configuration
• SMA Female Connector 1 • 50 Ohms
• TNC Male Reverse Polarity Connector 2 • Straight Body Geometry
Features
• SMA Interface compliant with MIL-STD-348A • Gold Plated Beryllium Copper Contact
• TNC Interface compliant with MIL-STD-348A • 30 µin min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9602 SMA female to rp TNC male adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to reverse polarity TNC adapter has a female to male gender configuration. PE9602 SMA female to reverse polarity TNC male
adapter operates to 11 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.05 in [26.67 mm]
Width 0.59 in [14.99 mm]
Weight 0.04 lbs [18.14 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to RP TNC Male Adapter PE9602

PE9602 REV 1.1 1
