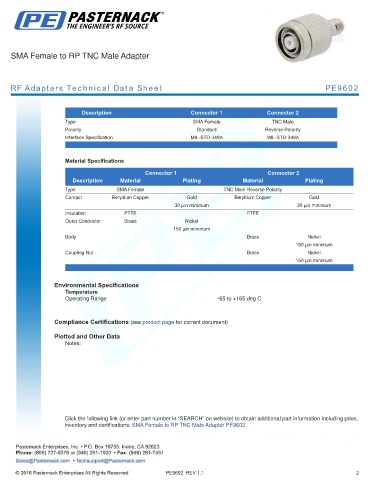

SMA Female to RP TNC Male Adapter

RF Adapters Technical Data Sheet PE9602

.
Description Connector 1 Connector 2
Type SMA Female TNC Male
Polarity Standard Reverse Polarity
Interface Specification MIL-STD-348A MIL-STD-348A
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female TNC Male Reverse Polarity
Contact Beryllium Copper Gold Beryllium Copper Gold
30 µin minimum 30 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
150 µin minimum
Body Brass Nickel
150 µin minimum
Coupling Nut Brass Nickel
150 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to RP TNC Male Adapter PE9602
