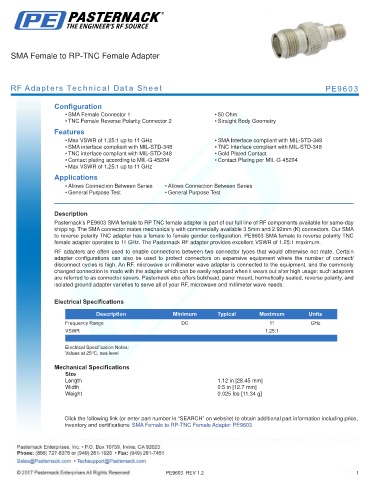

SMA Female to RP-TNC Female Adapter

RF Adapters Technical Data Sheet PE9603

Configuration
• SMA Female Connector 1 • 50 Ohm
• TNC Female Reverse Polarity Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 11 GHz • SMA Interface compliant with MIL-STD-348
• SMA interface compliant with MIL-STD-348 • TNC Interface compliant with MIL-STD-348
• TNC interface compliant with MIL-STD-348 • Gold Plated Contact
• Contact plating according to MIL-G-45204 • Contact Plating per MIL-G-45204
• Max VSWR of 1.25:1 up to 11 GHz
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9603 SMA female to RP TNC female adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to reverse polarity TNC adapter has a female to female gender configuration. PE9603 SMA female to reverse polarity TNC
female adapter operates to 11 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.25:1
. .
Electrical Specification Notes:
Values at 25°C, sea level

Mechanical Specifications
Size
Length 1.12 in [28.45 mm]
Width 0.5 in [12.7 mm]
Weight 0.025 lbs [11.34 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to RP-TNC Female Adapter PE9603

PE9603 REV 1.2 1
