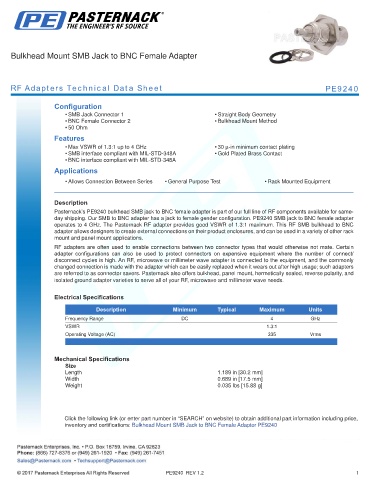

Bulkhead Mount SMB Jack to BNC Female Adapter

RF Adapters Technical Data Sheet PE9240

Configuration
• SMB Jack Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• Max VSWR of 1.3:1 up to 4 GHz • 30 µ-in minimum contact plating
• SMB interface compliant with MIL-STD-348A • Gold Plated Brass Contact
• BNC interface compliant with MIL-STD-348A
Applications

• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment
.
Description
Pasternack’s PE9240 bulkhead SMB jack to BNC female adapter is part of our full line of RF components available for same-
day shipping. Our SMB to BNC adapter has a jack to female gender configuration. PE9240 SMB jack to BNC female adapter
operates to 4 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This RF SMB bulkhead to BNC
adapter allows designers to create external connections on their product enclosures, and can be used in a variety of other rack
mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
. .

Mechanical Specifications
Size
Length 1.189 in [30.2 mm]
Width 0.689 in [17.5 mm]
Weight 0.035 lbs [15.88 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount SMB Jack to BNC Female Adapter PE9240

PE9240 REV 1.2 1
