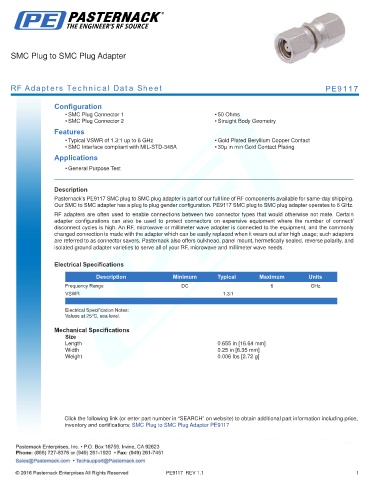

SMC Plug to SMC Plug Adapter

RF Adapters Technical Data Sheet PE9117

Configuration
• SMC Plug Connector 1 • 50 Ohms
• SMC Plug Connector 2 • Straight Body Geometry
Features
• Typical VSWR of 1.3:1 up to 6 GHz • Gold Plated Beryllium Copper Contact
• SMC Interface compliant with MIL-STD-348A • 30µ in min Gold Contact Plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9117 SMC plug to SMC plug adapter is part of our full line of RF components available for same-day shipping.
Our SMC to SMC adapter has a plug to plug gender configuration. PE9117 SMC plug to SMC plug adapter operates to 6 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.655 in [16.64 mm]
Width 0.25 in [6.35 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Plug to SMC Plug Adapter PE9117

PE9117 REV 1.1 1
