SMC Tee Adapter Plug-Plug-Plug

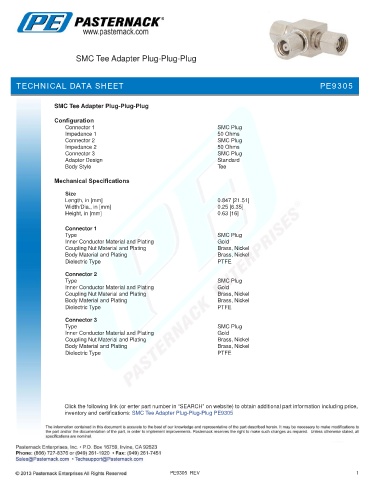

TECHNICAL DATA SHEET PE9305

SMC Tee Adapter Plug-Plug-Plug

Configuration
Connector 1 SMC Plug
Impedance 1 50 Ohms
Connector 2 SMC Plug
Impedance 2 50 Ohms
Connector 3 SMC Plug
Adapter Design Standard
Body Style Tee
Mechanical Specifications

Size
Length, in [mm] 0.847 [21.51]
Width/Dia., in [mm] 0.25 [6.35]
Height, in [mm] 0.63 [16]
.
Connector 1
Type SMC Plug
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Connector 2
Type SMC Plug
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE
Connector 3
Type SMC Plug
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Tee Adapter Plug-Plug-Plug PE9305

PE9305 REV 1
