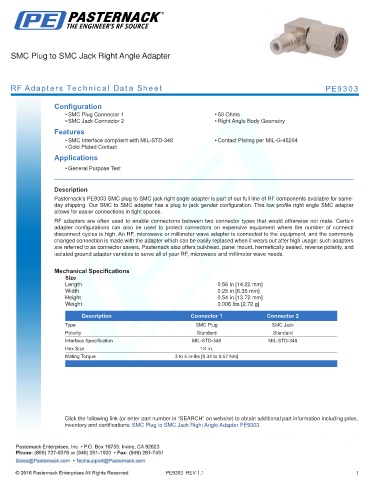

SMC Plug to SMC Jack Right Angle Adapter

RF Adapters Technical Data Sheet PE9303

Configuration
• SMC Plug Connector 1 • 50 Ohms
• SMC Jack Connector 2 • Right Angle Body Geometry
Features
• SMC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9303 SMC plug to SMC jack right angle adapter is part of our full line of RF components available for same-
day shipping. Our SMC to SMC adapter has a plug to jack gender configuration. This low profile right angle SMC adapter
allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.56 in [14.22 mm]
Width 0.25 in [6.35 mm]
Height 0.54 in [13.72 mm]
Weight 0.006 lbs [2.72 g]
.
Description Connector 1 Connector 2
Type SMC Plug SMC Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Hex Size 1/4 in.
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Plug to SMC Jack Right Angle Adapter PE9303
