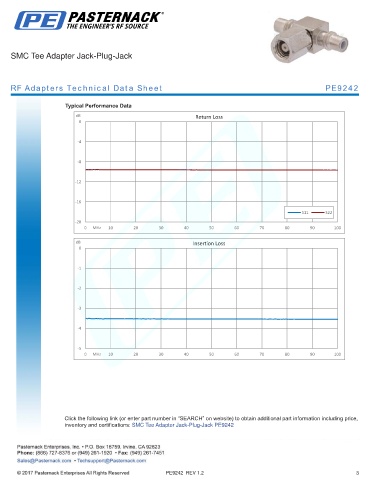

SMC Tee Adapter Jack-Plug-Jack
RF Adapters Technical Data Sheet PE9242
Typical Performance Data
dB Return Loss
0
-4
-8
-12
-16
S11 S22
-20
0 MHz 10 20 30 40 50 60 70 80 90 100
dB Insertion Loss
0
-1
-2
-3
-4
-5
0 MHz 10 20 30 40 50 60 70 80 90 100
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Tee Adapter Jack-Plug-Jack PE9242
