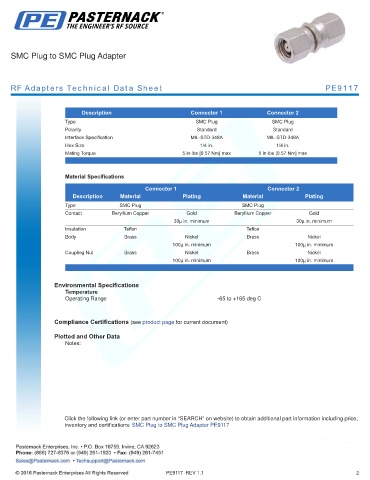

SMC Plug to SMC Plug Adapter

RF Adapters Technical Data Sheet PE9117

.
Description Connector 1 Connector 2
Type SMC Plug SMC Plug
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Hex Size 1/4 in. 1/4 in.
Mating Torque 5 in-lbs [0.57 Nm] max 5 in-lbs [0.57 Nm] max
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMC Plug SMC Plug
Contact Beryllium Copper Gold Beryllium Copper Gold
30µ in. minimum 30µ in. minimum
Insulation Teflon Teflon
Body Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
Coupling Nut Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Plug to SMC Plug Adapter PE9117

PE9117 REV 1.1 2
