SMC Tee Adapter Jack-Jack-Jack

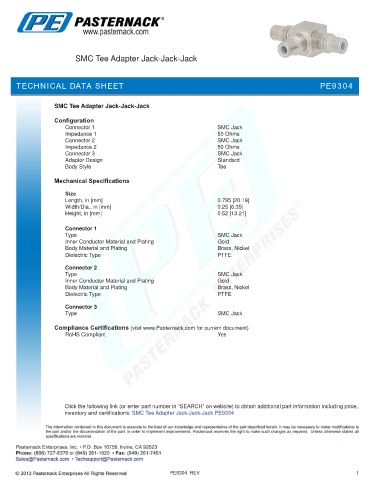

TECHNICAL DATA SHEET PE9304

SMC Tee Adapter Jack-Jack-Jack

Configuration
Connector 1 SMC Jack
Impedance 1 50 Ohms
Connector 2 SMC Jack
Impedance 2 50 Ohms
Connector 3 SMC Jack
Adapter Design Standard
Body Style Tee
Mechanical Specifications

Size
Length, in [mm] 0.795 [20.19]
Width/Dia., in [mm] 0.25 [6.35]
Height, in [mm] 0.52 [13.21]
.
Connector 1
Type SMC Jack
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE
Connector 2
Type SMC Jack
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE
Connector 3
Type SMC Jack

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Tee Adapter Jack-Jack-Jack PE9304

PE9304 REV 1
