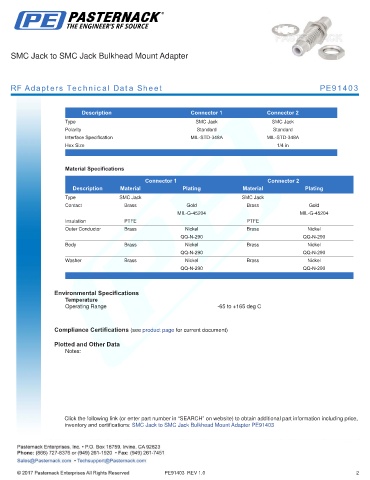

SMC Jack to SMC Jack Bulkhead Mount Adapter

RF Adapters Technical Data Sheet PE91403

.
Description Connector 1 Connector 2
Type SMC Jack SMC Jack
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Hex Size 1/4 in
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMC Jack SMC Jack
Contact Brass Gold Brass Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
Body Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
Washer Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Jack to SMC Jack Bulkhead Mount Adapter PE91403
