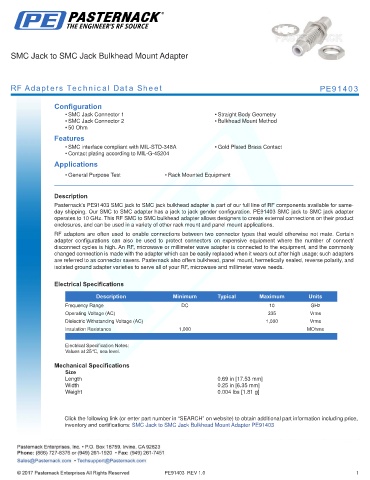

SMC Jack to SMC Jack Bulkhead Mount Adapter

RF Adapters Technical Data Sheet PE91403

Configuration
• SMC Jack Connector 1 • Straight Body Geometry
• SMC Jack Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• SMC interface compliant with MIL-STD-348A • Gold Plated Brass Contact
• Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE91403 SMC jack to SMC jack bulkhead adapter is part of our full line of RF components available for same-
day shipping. Our SMC to SMC adapter has a jack to jack gender configuration. PE91403 SMC jack to SMC jack adapter
operates to 10 GHz. This RF SMC to SMC bulkhead adapter allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Insulation Resistance 1,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.69 in [17.53 mm]
Width 0.25 in [6.35 mm]
Weight 0.004 lbs [1.81 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Jack to SMC Jack Bulkhead Mount Adapter PE91403

PE91403 REV 1.0 1
