SMC Jack to SMB Jack Adapter

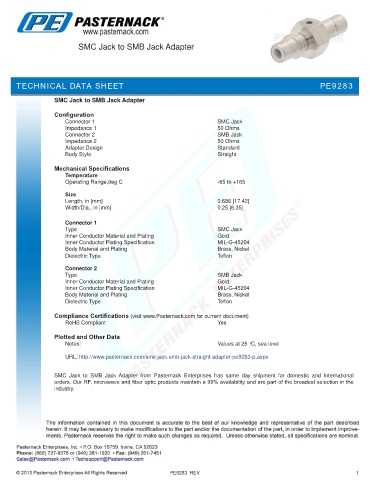

TECHNICAL DATA SHEET PE9283

SMC Jack to SMB Jack Adapter

Configuration
Connector 1 SMC Jack
Impedance 1 50 Ohms
Connector 2 SMB Jack
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 0.686 [17.42]
Width/Dia., in [mm] 0.25 [6.35]
.
Connector 1
Type SMC Jack
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type SMB Jack
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/smc-jack-smb-jack-straight-adapter-pe9283-p.aspx

SMC Jack to SMB Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

PE9283 REV 1
