SMP Female to SMP Female Adapter .377 Special Length

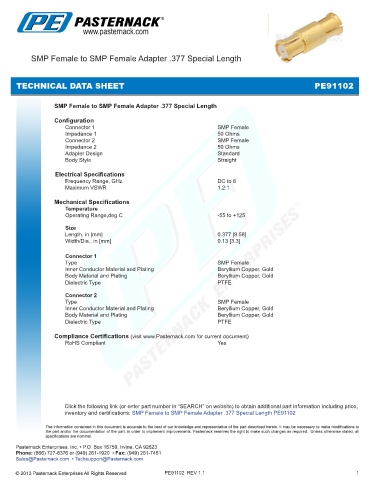

TECHNICAL DATA SHEET PE91102
SMP Female to SMP Female Adapter .377 Special Length
Configuration
Connector 1 SMP Female
Impedance 1 50 Ohms
Connector 2 SMP Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight
Electrical Specifications
Frequency Range, GHz DC to 8
Maximum VSWR 1.2:1
Mechanical Specifications
Temperature
Operating Range,deg C -55 to +125
Size
Length, in [mm] 0.377 [9.58]
Width/Dia., in [mm] 0.13 [3.3]
.
Connector 1
Type SMP Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Beryllium Copper, Gold
Dielectric Type PTFE
Connector 2
Type SMP Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Beryllium Copper, Gold
Dielectric Type PTFE
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Adapter .377 Special Length PE91102
PE91102 REV 1.1 1
