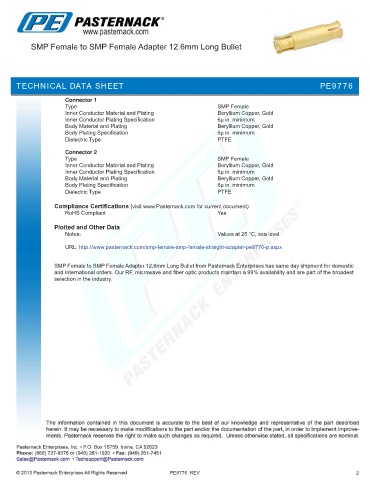

SMP Female to SMP Female Adapter 12.6mm Long Bullet

TECHNICAL DATA SHEET PE9776

Connector 1
Type SMP Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification 6µ in. minimum
Body Material and Plating Beryllium Copper, Gold
Body Plating Specification 6µ in. minimum
Dielectric Type PTFE

Connector 2
Type SMP Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification 6µ in. minimum
Body Material and Plating Beryllium Copper, Gold
Body Plating Specification 6µ in. minimum
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/smp-female-smp-female-straight-adapter-pe9776-p.aspx

SMP Female to SMP Female Adapter 12.6mm Long Bullet from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

PE9776 REV 2
