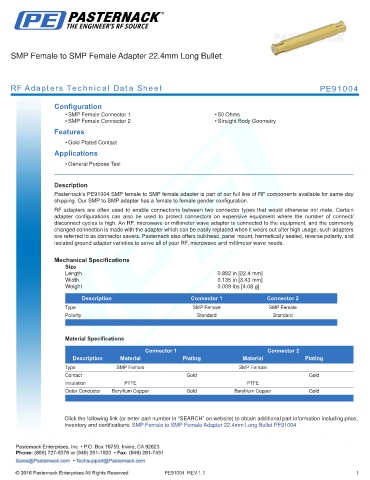

SMP Female to SMP Female Adapter 22.4mm Long Bullet

RF Adapters Technical Data Sheet PE91004

Configuration
• SMP Female Connector 1 • 50 Ohms
• SMP Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE91004 SMP female to SMP female adapter is part of our full line of RF components available for same-day
shipping. Our SMP to SMP adapter has a female to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.882 in [22.4 mm]
Width 0.135 in [3.43 mm]
Weight 0.009 lbs [4.08 g]
.
Description Connector 1 Connector 2
Type SMP Female SMP Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMP Female SMP Female
Contact Gold Gold
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold Beryllium Copper Gold
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Adapter 22.4mm Long Bullet PE91004

PE91004 REV 1.1 1
