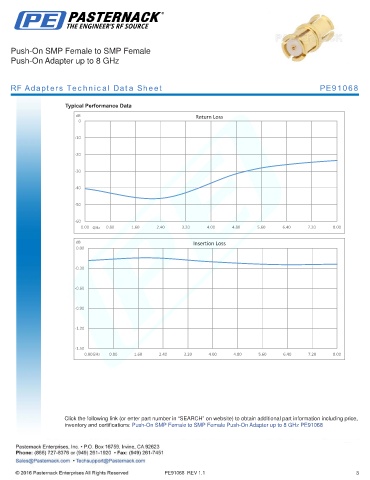

Push-On SMP Female to SMP Female
Push-On Adapter up to 8 GHz
RF Adapters Technical Data Sheet PE91068
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
0.00 GHz 0.80 1.60 2.40 3.20 4.00 4.80 5.60 6.40 7.20 8.00
dB Insertion Loss
0.00
-0.30
-0.60
-0.90
-1.20
-1.50
0.00GHz 0.80 1.60 2.40 3.20 4.00 4.80 5.60 6.40 7.20 8.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Push-On SMP Female to SMP Female Push-On Adapter up to 8 GHz PE91068
PE91068 REV 1.1 3
