Push-On SMP Female to SMP Female Push-
On Adapter .370 Special Length

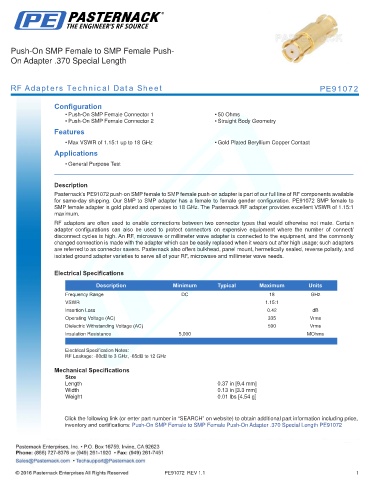

RF Adapters Technical Data Sheet PE91072

Configuration
• Push-On SMP Female Connector 1 • 50 Ohms
• Push-On SMP Female Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.15:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE91072 push-on SMP female to SMP female push-on adapter is part of our full line of RF components available
for same-day shipping. Our SMP to SMP adapter has a female to female gender configuration. PE91072 SMP female to
SMP female adapter is gold plated and operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1
maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
Insertion Loss 0.42 dB
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
RF Leakage: -80dB to 3 GHz, -65dB to 12 GHz

Mechanical Specifications
Size
Length 0.37 in [9.4 mm]
Width 0.13 in [3.3 mm]
Weight 0.01 lbs [4.54 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Push-On SMP Female to SMP Female Push-On Adapter .370 Special Length PE91072

PE91072 REV 1.1 1
