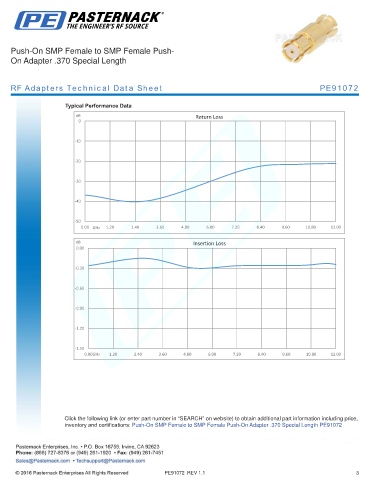

Push-On SMP Female to SMP Female Push-
On Adapter .370 Special Length
RF Adapters Technical Data Sheet PE91072
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
0.00 GHz 1.20 2.40 3.60 4.80 6.00 7.20 8.40 9.60 10.80 12.00
dB Insertion Loss
0.00
-0.30
-0.60
-0.90
-1.20
-1.50
0.00GHz 1.20 2.40 3.60 4.80 6.00 7.20 8.40 9.60 10.80 12.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Push-On SMP Female to SMP Female Push-On Adapter .370 Special Length PE91072
PE91072 REV 1.1 3
