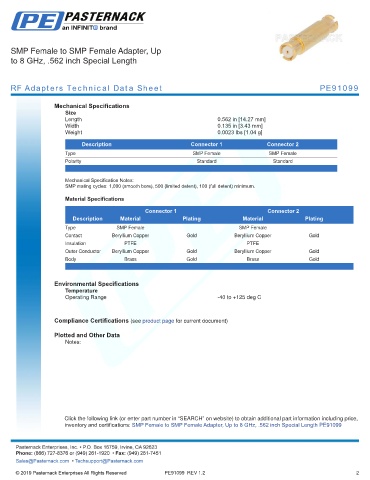

SMP Female to SMP Female Adapter, Up
to 8 GHz, .562 inch Special Length

RF Adapters Technical Data Sheet PE91099

Mechanical Specifications
Size
Length 0.562 in [14.27 mm]
Width 0.135 in [3.43 mm]
Weight 0.0023 lbs [1.04 g]
.
Description Connector 1 Connector 2
Type SMP Female SMP Female
Polarity Standard Standard
.
Mechanical Specification Notes:
SMP mating cycles: 1,000 (smooth bore), 500 (limited detent), 100 (full detent) minimum.
Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMP Female SMP Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold Beryllium Copper Gold
Body Brass Gold Brass Gold
. .

Environmental Specifications
Temperature
Operating Range -40 to +125 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Adapter, Up to 8 GHz, .562 inch Special Length PE91099
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91099 REV 1.2 2
