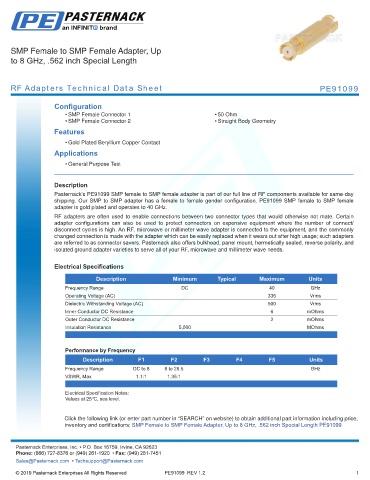

SMP Female to SMP Female Adapter, Up
to 8 GHz, .562 inch Special Length

RF Adapters Technical Data Sheet PE91099

Configuration
• SMP Female Connector 1 • 50 Ohm
• SMP Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Beryllium Copper Contact
Applications

• General Purpose Test
.
Description
Pasternack’s PE91099 SMP female to SMP female adapter is part of our full line of RF components available for same-day
shipping. Our SMP to SMP adapter has a female to female gender configuration. PE91099 SMP female to SMP female
adapter is gold plated and operates to 40 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 8 8 to 26.5 GHz
VSWR, Max 1.1:1 1.35:1
.
Electrical Specification Notes:
Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Adapter, Up to 8 GHz, .562 inch Special Length PE91099
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91099 REV 1.2 1
