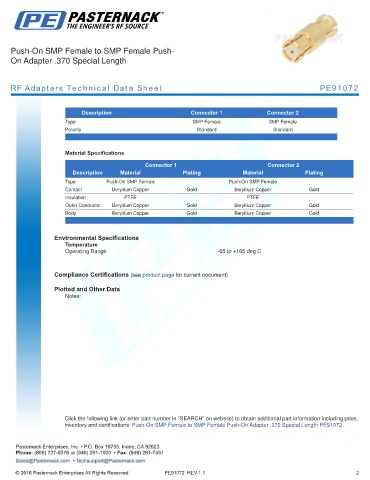

Push-On SMP Female to SMP Female Push-
On Adapter .370 Special Length

RF Adapters Technical Data Sheet PE91072

.
Description Connector 1 Connector 2
Type SMP Female SMP Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Push-On SMP Female Push-On SMP Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold Beryllium Copper Gold
Body Beryllium Copper Gold Beryllium Copper Gold
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Push-On SMP Female to SMP Female Push-On Adapter .370 Special Length PE91072

PE91072 REV 1.1 2
